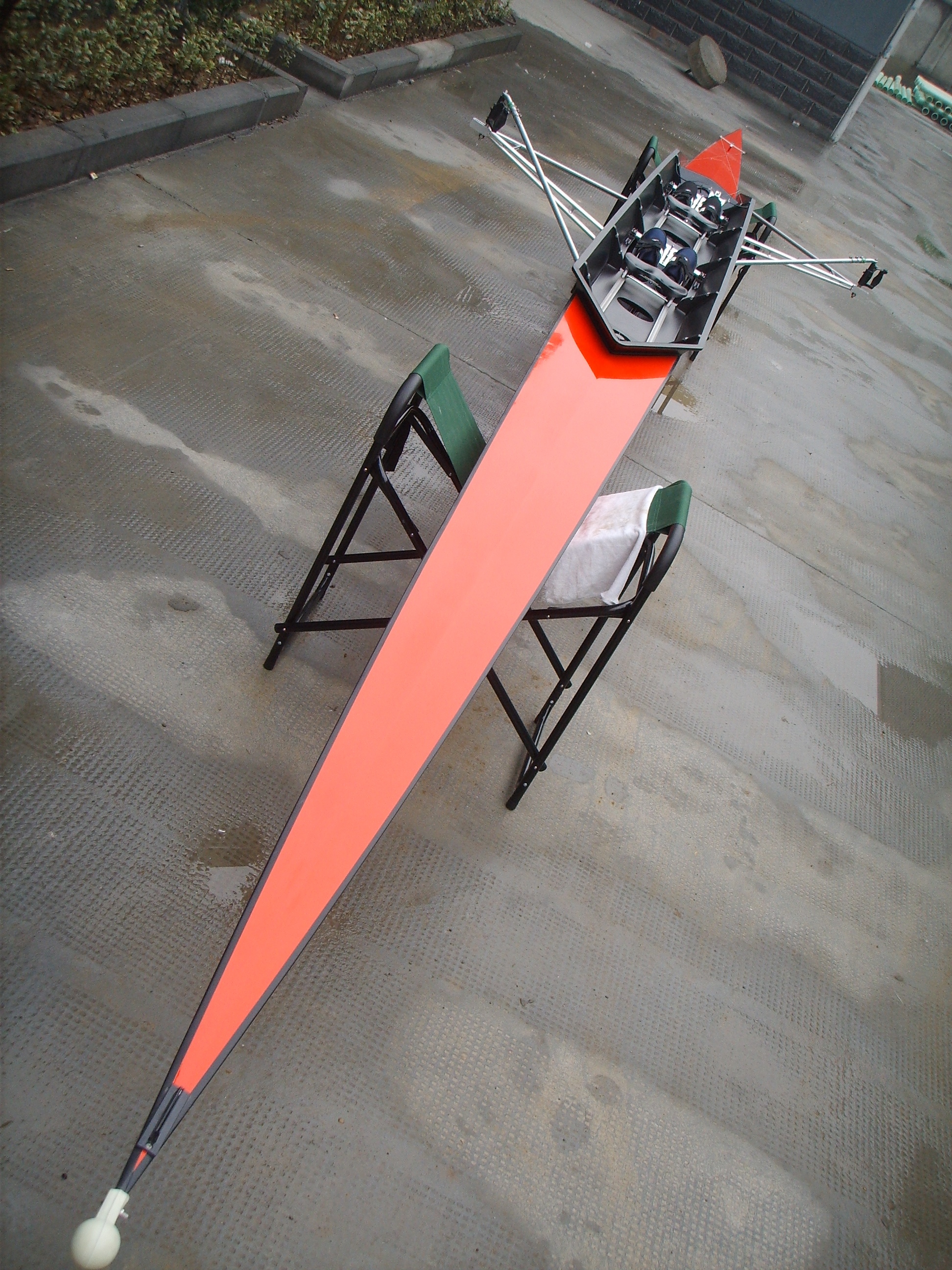

2X/2-doubes scull/pairs
Rowing Boat Lay-up Details
All boat is Hull-high temperature vacuumed and cured with epoxy resin heat cured in mold for maximum structural integrity and stiffness .
All the rowing boat is Laminated sandwich construction according to different construction ,with additional material reinforcement on gunwales and keel.
Instruction of Material Construction
1). “Elite A+” type Shell: Laminated sandwich construction, high Modulus Carbon wet layup, with Nomex honeycomb core
2). “Elite A “ type Shell: Laminated sandwich construction, high Modulus Carbon interior and Kevlar exterior layup, with Nomex honeycomb core
3). “Elite B” type Shell: Laminated sandwich construction, high Modulus kevlar wet layup, with Nomex honeycomb core
4.) “club A” type Shell: Fiberglass wet layup, with Lantor ® core mat and necessary Kevlar tape reinforcement.
5) Dimensions: please refer to our mould sheet.
6) standard weight for A+ and A : A+ 1X 14kg, 2X/- 27kg, 4X/+/- 52kg, 8+ 96kg
club A 15-20% over weight
Fittings:
1) All metal work from aerospace grade stainless steel and aluminum
2) Carbon sliding seats
3) Sea grade anodized aluminum slides, adjustable
4)Shoulders: Monocoque seat deck (Ribless) if with wing rigger
5)Inside structure: carbon /kavlar seat deck/canvas
6) Adjustable rowing gates with high strength Nylon oarlocks and stainless steel pin
7) Foot stretcher fully adjustable with famous brand sports rowing shoes
Rigger options:
1.aluminium alloy tube rigger.
2.aluminium alloy wing rigger.
3.aluminium alloy tube rigger(no backstay)
4.aluminium alloy wing rigger(no backstay)
5.quick released aluminium alloy wing rigger
6.carbon wing rigger.
7.carbon wing rigger(no backstay)
Boat Color: customer color, according to color code book
Packing:
Bubble plastic sheet
MouldList:
|
Official rowing boat |
Type |
Name |
Mould No |
Rowers 'weight |
Length |
Width(If Including flap) |
Depth(cm) |
Standard Weight(kg) |
|
|
2X |
Double Scull |
201F |
57-75 |
940 |
42(48) |
26.5 |
27±0.5 |
wing rigger only |
|
|
2- |
Pairs |
||||||||
|
2X |
Double Scull |
205F |
60-75 |
940 |
43(47) |
30 |
27±0.5 |
|
|
|
2- |
Pairs |
||||||||
|
2X |
Double Scull |
208E |
70-90 |
960 |
45(52.5) |
29.8 |
27±0.5 |
wing rigger only |
|
|
2- |
Pairs |
||||||||
|
2X |
Double Scull |
209E |
85-100 |
985 |
48.5(53) |
30.8 |
27±0.5 |
wing rigger only |
|
|
2- |
Pairs |
||||||||
|
2X |
Double Scull |
210E |
50-65 |
884 |
43.5(50) |
28 |
27±0.5 |
wing rigger only |
|
|
2- |
Pairs |
||||||||
|
2X |
Double Scull |
211F |
50-65 |
900 |
42(48) |
27 |
27±0.5 |
bow wing rigger only |
|
|
2- |
Pairs |
